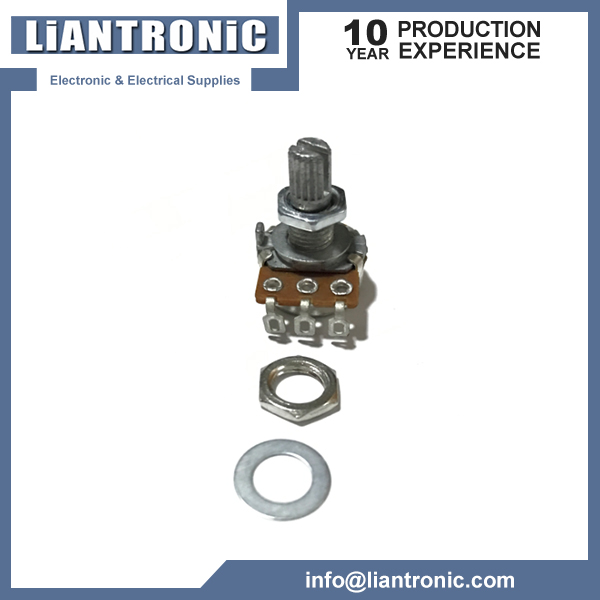

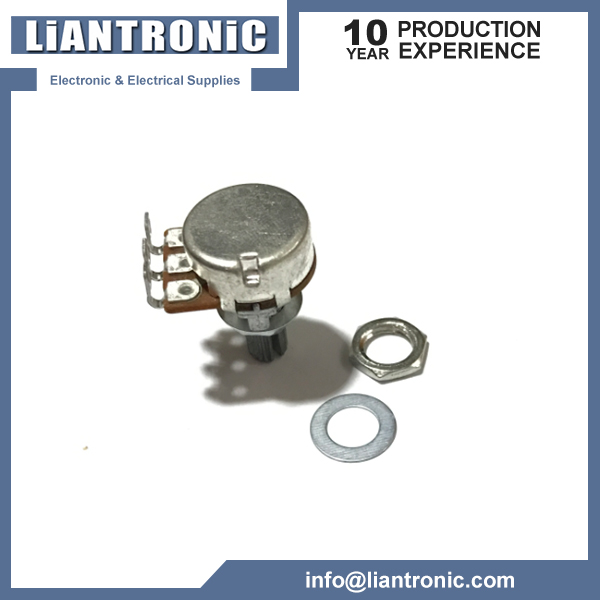

Guitar Rotary Potentiometer

  • Model: LT-16K4
  • Type: Rotary Potentiometer
  • Technology: Carbon Film
  • Total Resistance: 1KΩ-1MΩ
  • Resistance Tolerance: ±20%
  • Max. Operating Voltage:150VAC
  • Operating Temperature:-20~+70°c
  • Shaft diameter: 6.0/ 6.35mm
  • Shaft Type: Flat/ Round/ Teeth Knurl Types
Wholesale 1K 5K 10K 20K 50K 100K 200K 250K 500K Linear Alps Guitar Rotary Potentiometer with Push  Switch

Specification for 100K Rotary Potentiometer with Switch
  • Model:LT-16K4
  • Type: Rotary Potentiometer
  • Technology:Carbon Film
  • Total Resistance: 1KΩ-1MΩ
  • Resistance Tolerance: ±20%
  • Max. Operating Voltage: Single Unit: AC50V/DC20V;Dual Unit: DC 20V
  • Operating Temperature-20~+70℃
  • Shaft Diameter: 6.0/ 6.35mm
  • Shaft Type: Flat/ Round/ Teeth Knurl Types
  • Number of Turns: Single
  • Working Life:100000 times
  • Accessories:Nut & Washer
  • Terminals:Solder terminals
  • Total Rotational Angle: 300°C+/-5°C
  • Rotational Torque:10gf.cm~100gf.cm
  • Rotational Stopper Strength: 8.0kgf min
  • Push-Pull Strength:3.0Kgf.cm Min
  • Click torque: 50gf.cm~180gf.cm
  • Resistance Value:Various Resistance Available
   Trading Details for Single Short Shank 100K Rotary Potentiometer
  • Samples: for free
  • Packings:  1000PCS/CARTON
  •  MOQ: 500PCS
  • Lead Time: usually delivery within 5-10days after payment received
  • Shipping Methords: by express (DHL/UPS/TNT/FedEx) or by Air or by Sea
  •  Payment Details: below 10000USD, 100%TT in advance  ;exceed 10000USD, 40% TT in advance, the balance paid before shipment

The Product Details for  Single Short Shank 100K Rotary Potentiometer
It is great for the DIY pedal builder that is just getting started in building pedals.
Also, the rotary potentiometer could be widely used in Household Appliances, Electric Force, Telecommunications, Machine Tool, Vessel, Textile, Printing, Mining machine, Musical Instrument,Stage Lighting Equipment,Sound Console etc.



   For More details,Please don't hesitate to send inquiry or call me by 0086 13968779429 anytime.  Any quantities are welcome here!!!
