Zhejiang Hairui Electronic Technology Co.,Ltd.

Electrical AC Magnetic Starter

  • Model: QCX2-32
  • Frequency: AC 50/60HZ
  • Rated Voltage: 220V-690V
  • Rated Current: 32A
  • Ambient temperture: -5℃~+40℃
  • Altitude: not exceeding 2000m
  • Degree of protection:IP65
  • Standard: accord with IEC/EN 60947-4-1
  • OEM/ODM: Available
BASIC INFO
 USA Hot LE1-D 32A Telemecanique Electrical AC Magnetic Starter from Factory








Specification for LE1-D telemecanique electrical Magnetic starter




  • Model:  QCX2-32
  • Frequency: AC 50/60HZ
  • Rated Voltage: 220V-690V
  • Rated Current: 32A
  • Ambient temperture:-5℃~+40℃
  • Altitude: not exceeding 2000m
  • Degree of protection:IP65
  • Standard: accord with IEC/EN 60947-4-1
  • OEM/ODM: Available
  • Application: Widely used in machinery, petroleum, chemical, power, coal and other fields of the motor system

Type Rated Maximum Power AC3 duty (KW) SuitableThermal Relay(A)
Current(A) 220V 380V 415V 440V 500V 660V
  230V 400V 690V
QCX2-9 9 2.2 4 4 4 5.5 5.5 JR28 D1312
JR28 D1314
QCX2-12 12 3 5.5 5.5 5.5 7.5 7.5 JR28 D1316
QCX2-18 18 4 7.5 9 9 10 10 JR28 D1321
QCX2-25 25 5.5 11 11 11 15 15 JR28 D1322
JR28 D2353
QCX2-32 32 7.5 15 15 15 18.5 18.5 JR28 D2355
QCX2-40 40 11 18.5 22 22 22 30 JR28 D3353
JR28 D3355
QCX2-50 50 15 22 25 30 30 33 JR28 D3357
JR28 D3359
QCX2-65 65 18.5 30 37 37 37 37 JR28 D3361
QCX2-80 80 22 37 45 45 55 45 JR28 D3363
JR28 D3365
QCX2-95 95 25 45 45 45 55 45 JR28 D3365

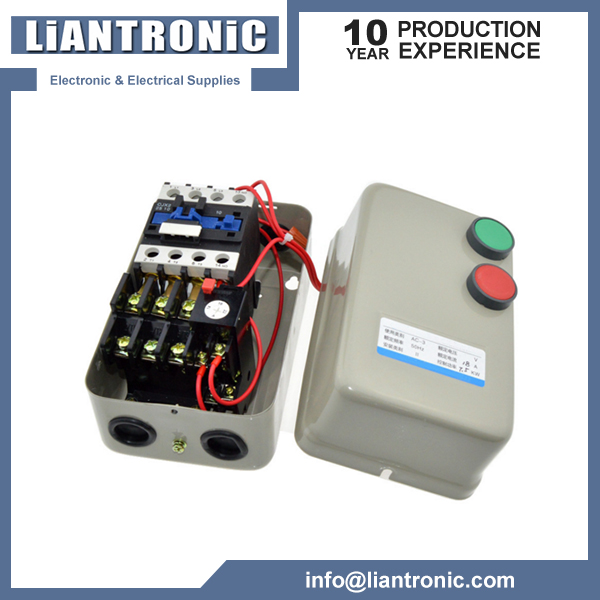

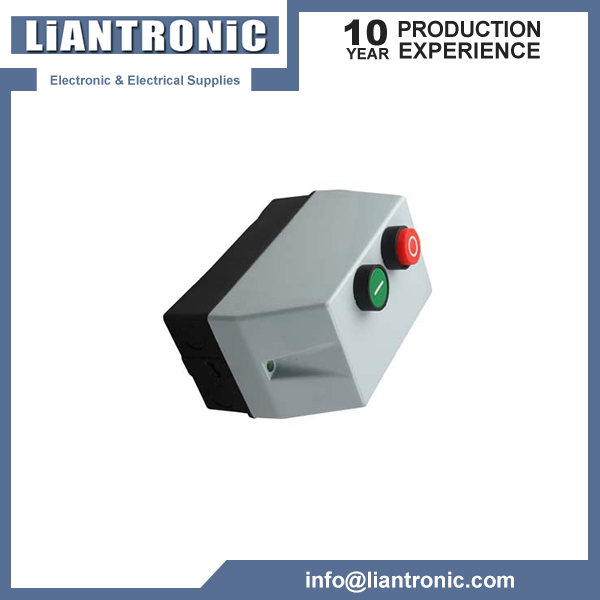

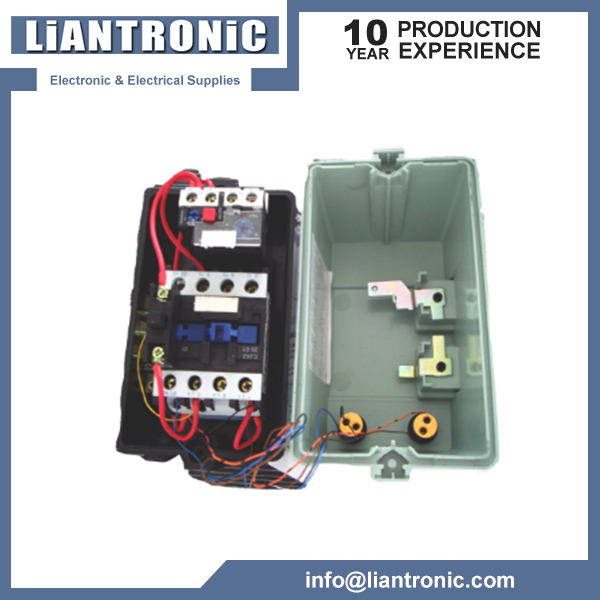

Product Photos for  QCX2 electrical Magnetic starter


QCX2 series magnetic starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 690Vfor far distance making and breaking circuit and frequently starting and controllingmotor. It has the features of small volume, light weight, low power consumption, high efficiency, safe andreliable performance. It complies to IEC947-4-1.








 For More details,Please don't hesitate to send inquiry or call me by 0086 13968779429 anytime.  Any quantities are welcome here!!!
