BASIC INFO

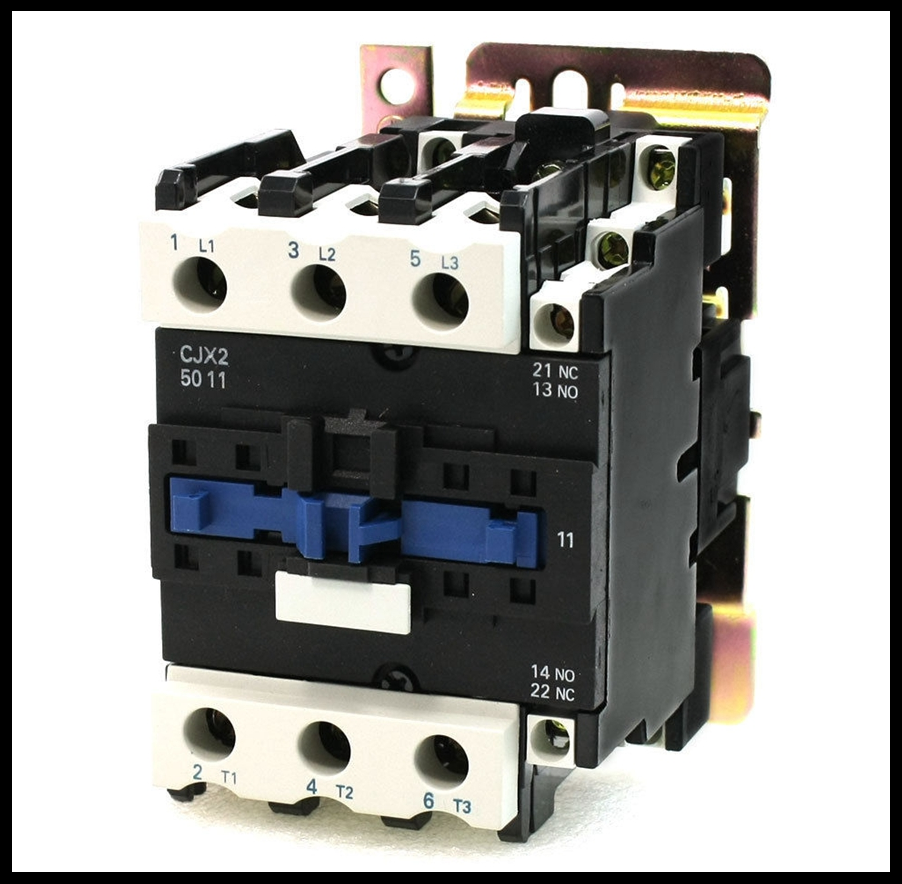

China Factory Supply CJX2-D5011 3 Phase 220V-660V 50/60Hz AC Magnetic Contactor
Specification for AC Magnetic Contactor Hot in Sountheast Asian Market
-
Model: CJX2-D5011 -
Frequency: AC 50/60HZ -
Rated Voltage: 220V-660V -
Rated Current: 9A-95A -
Ambient temperture:-5℃～+40℃ -
Phase: 3 -
Application: used to motor protector, star delta starter -
Standard: accord with IEC/EN 60947-4-1 standard -
OEM/ODM: Available
| Item | CJX2-D09 | CJX2-D12 | CJX2-D18 | CJX2-D25 | CJX2-D32 | |
| Rated work | AC3 | 9 | 12 | 18 | 25 | 321 |
| Current(A) | AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 |
| AC3 Three-phase capacity | 220V/230V | 2.2 | 3 | 4 | 5.5 | 7.5 |
| Three phase squirrel cage motor | 380/400V | 4 | 5.5 | 7.5 | 11 | 15 |
| AC3(KW) | 415 | 4 | 5.5 | 9 | 11 | 15 |
| 440 | 4 | 5.5 | 9 | 11 | 18.5 | |
| 500 | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| 660/690 | 5.5 | 7.5 | 10 | 15 | 50 | |
| Rated Thermal current(A) | AC4X104 | 20 | 20 | 32 | 40 | 15-7 |
| Electrical life | AC3X106 | 20 | 20-15 | 20-7 | 15-7 | 2 |
| 2 | 2 | 2 | 2 | 20 | ||
| Mechanical life | 20 | 20 | 20 | 20 | ||
| Number of contacts | 3P+NO | |||||
| 3P+NC |
| Item | CJX2-D40 | CJX2-D50 | CJX2-D65 | CJX2-D80 | CJX2-D95 | |
| Rated work | AC3 | 40 | 50 | 65 | 80 | 95 |
| Current(A) | AC4 | 18.5 | 24 | 28 | 37 | 44 |
| AC3 Three-phase capacity | 220V/230V | 11 | 15 | 18.5 | 22 | 25 |
| Three phase squirrel cage motor | 380/400V | 18.5 | 22 | 30 | 37 | 45 |
| AC3(KW) | 415 | 22 | 25 | 37 | 45 | 45 |
| 440 | 22 | 30 | 37 | 45 | 45 | |
| 500 | 22 | 30 | 37 | 55 | 55 | |
| 660/690 | 30 | 33 | 37 | 45 | 45 | |
| Rated Thermal current(A) | AC4X104 | 60 | 80 | 80 | 125 | 125 |
| Electrical life | AC3X106 | 10-7 | 7 | 7-6 | 7-5 | 7-5 |
| 2 | 2 | 1.6 | 1.6 | 1.6 | ||
| Mechanical life | 20 | 20 | 20 | 10 | 10 | |
| Number of contacts | 3P+NO+NC | |||||

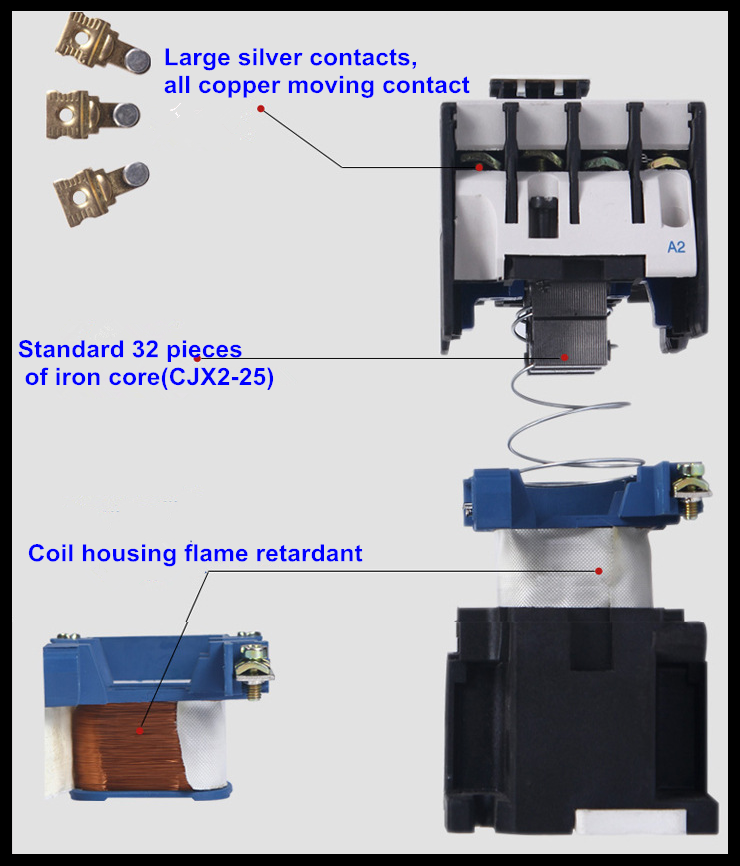

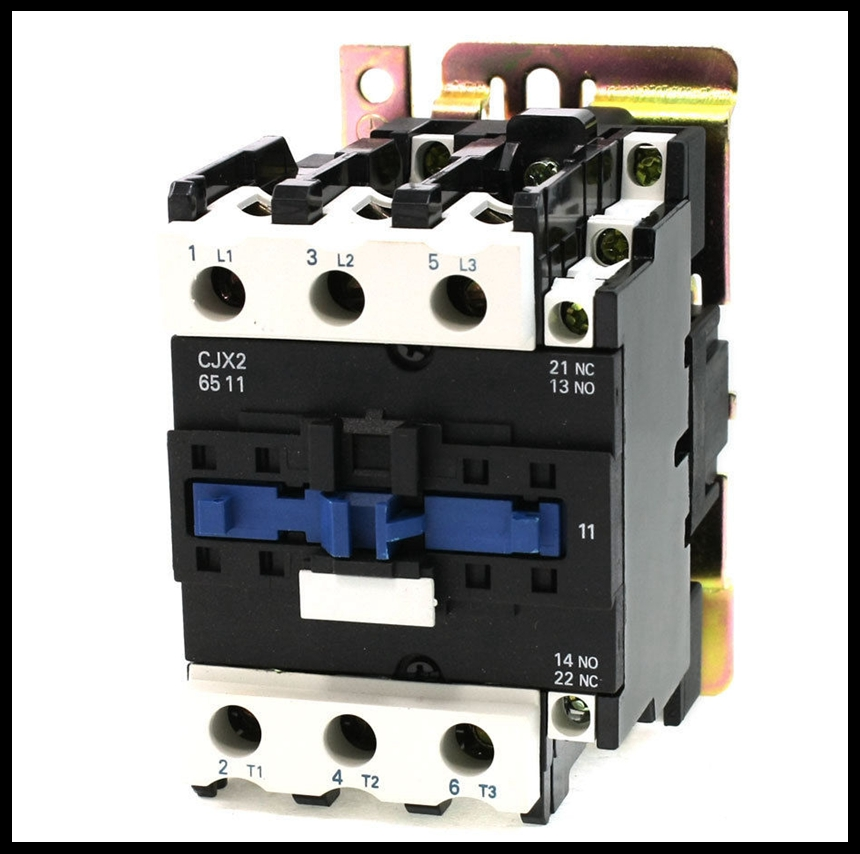

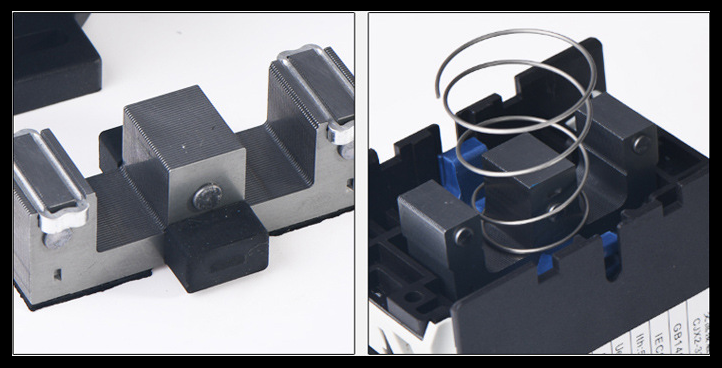

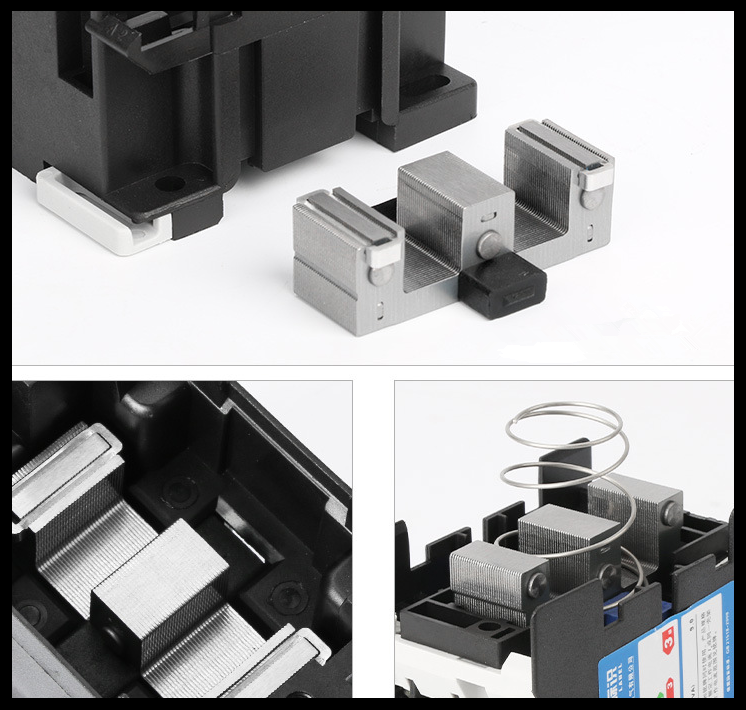

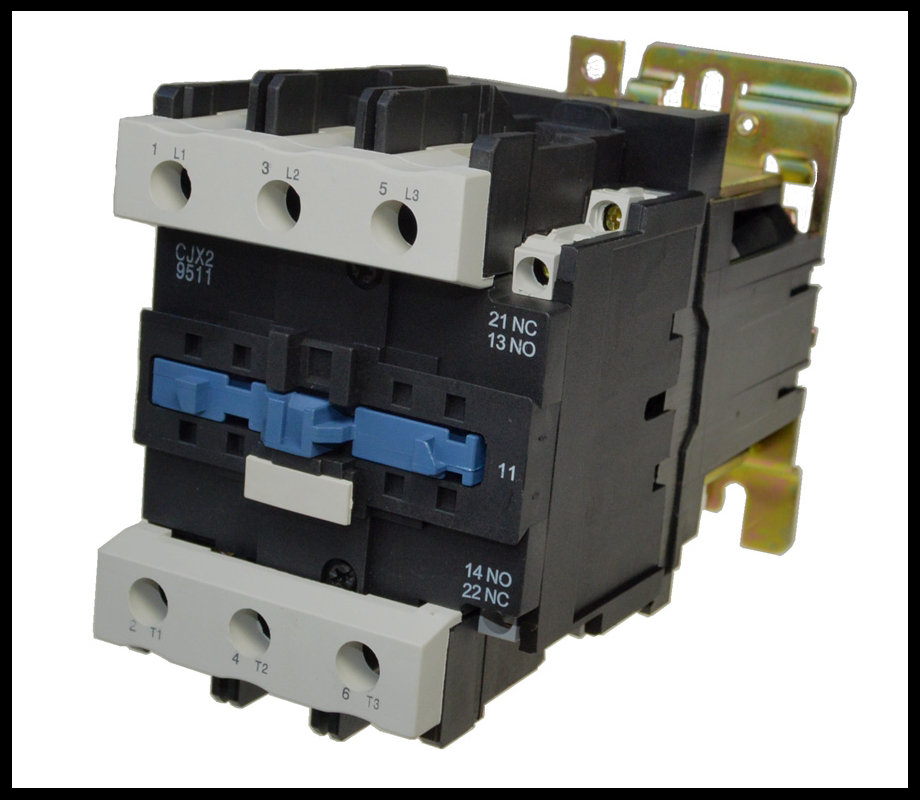

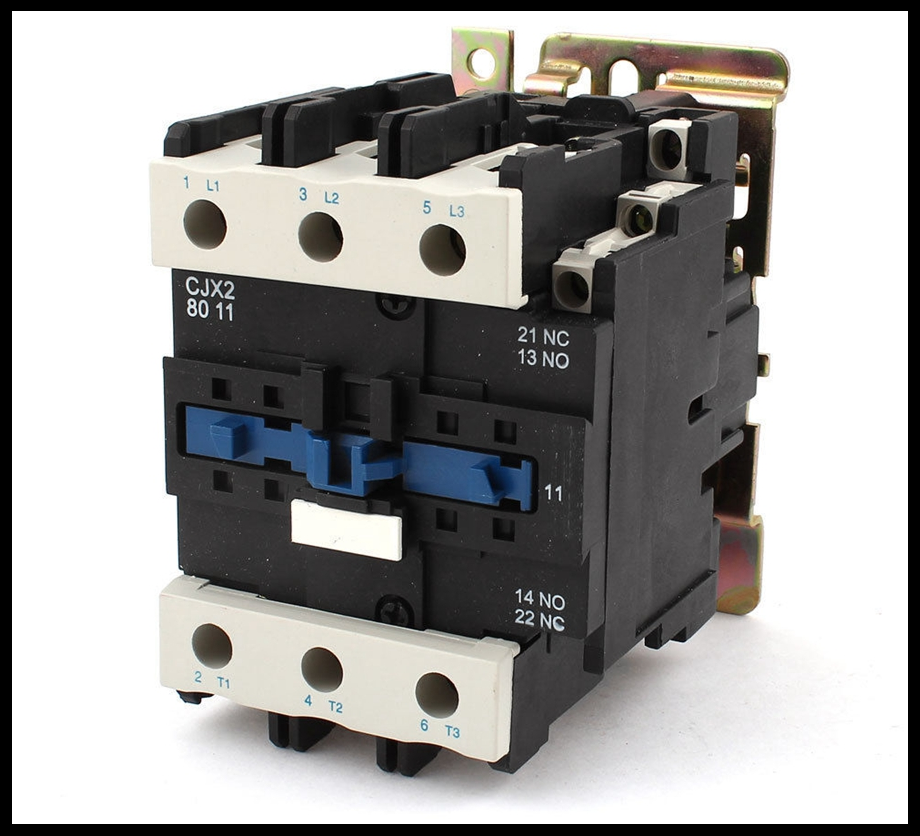

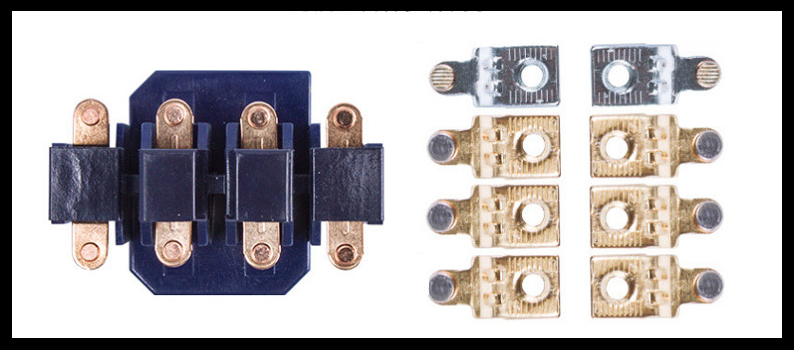

Product Details for 660V Coil CJX2 Classic Type AC Magnetic Contactor
CJX2 (LC1-D )Series AC Contactor is used to the circuit of AC 50HZ /60HZ frenquency， Rated voltage to 660V, rated carrent to 95A. for turn-on and short-circuit, start and control the ac motor frequently. It also can use as a delay contactor,Mechanical interlocking contactors and star delta starters , while combine to the auxiliary contact, delay and mechanical interlocks. It also can become the electro-magnetic starter while combine to the thermal relay . It's accord with IEC60947-4-1 stardand.

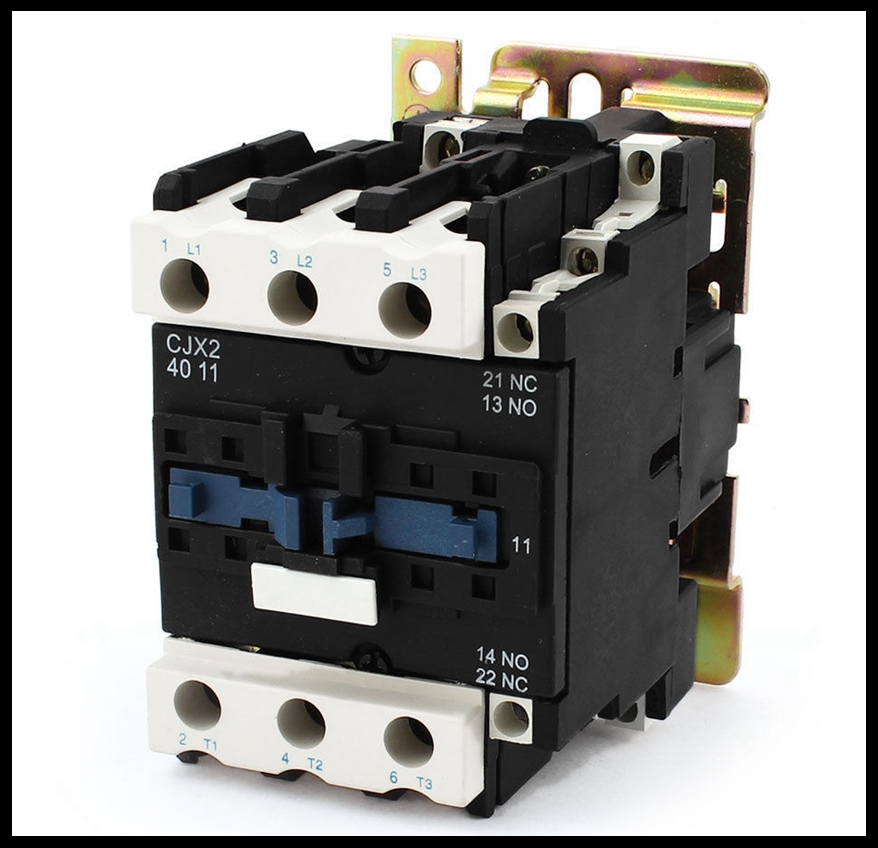

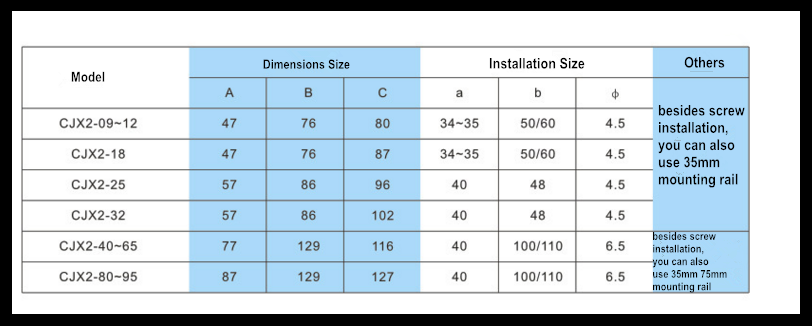

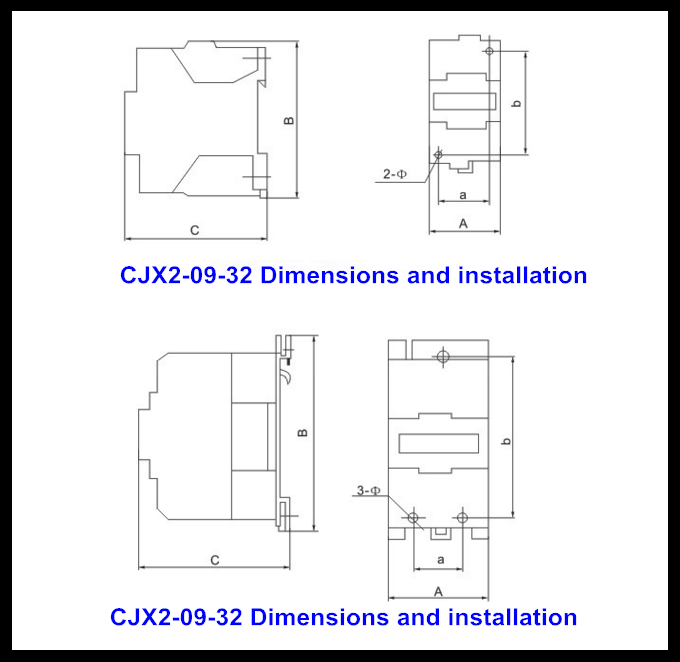

Dimensions & Installation for LC1-D4011 Electrical Contactor Types
For More details,Please don't hesitate to send inquiry or call me by 0086 13968779429 anytime. Any quantities are welcome here!!!

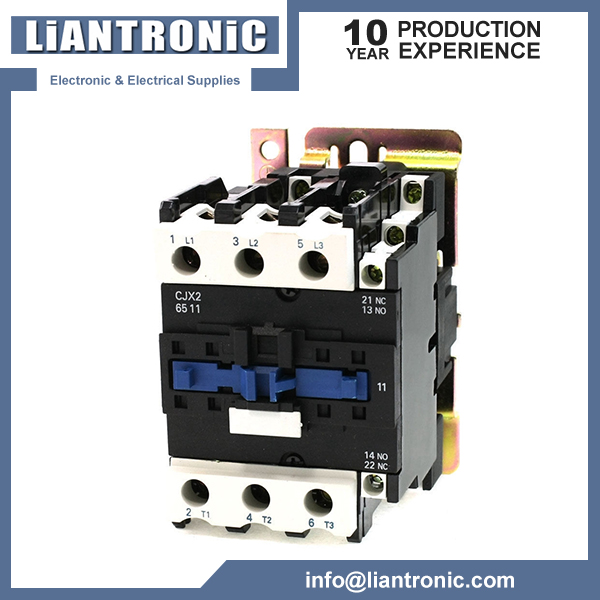

←[Previous Product] :cjx2-6511 Coil Voltge 220V Air Conditioning AC Contactor

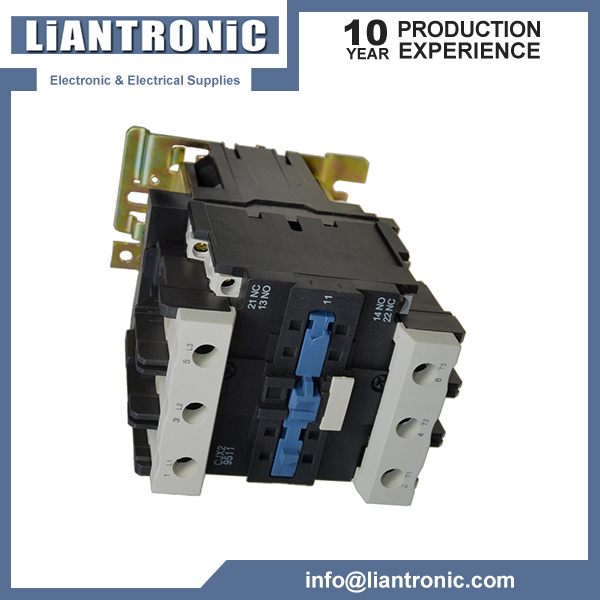

[Next Product]→: CJX2( LC1-D) Series Kontaktor 3 Phase AC Contactor
